Brand Name : JC
Model Number : JC-KS-PH2.5MM
Certification : CE / ROHS / ISO, FCC, UL
Place of Origin : Shenzhen Guangdong China
MOQ : 1 Square Meter
Price : Discuss
Payment Terms : L/C , D/A, D/P, T/T, Western Union, MoneyGram, Cash
Supply Ability : 10000 Square Meter Per Month
Delivery Time : 8 -10 working days after advance payment arrived .
Packaging Details : Wooden case / Flight case / Carton
Control System : LINSN OR DB-STAR
Minimum Viewing Distance : 1m
Average Power consumption : 400W
Frame Frequency : 60-85HZ
Drive Mode : Dynamic 1/16 Duty Constant Current
Cabinet Size : 768mm(W)x1440mm(H)x70mm(D)
Cabinet Resolution : 307x576dots
Brightness : 2200nit
Floor Stand P2 Advertising LED Display Poster IP43 768mm(W)x1440mm(H)x70mm(D) In Stations / Malls / Hotels
Floor Stand P2 Advertising LED Display Poster Features
Light Cabinet size 512mm×512mm, just 12.5kg in weight. Possible to lift the cabinet one-handed, therefore saving much assembling time.
-- Thin Adopted Die-casting aluminum cabinet with features of high strength, toughness, Precision and hard deformation. Just 87mm in thickness as a whole comparing to 160mm of conventional cabinet.
-- Fast Use the facile connection lock in the cabinet. Assembling: Push the lock and then turn the revolving handle; Dismantling: Turn the handle and pull the lock. 10s/pcs.
-- Easy Used modular design, any cabinet of the screen is free of assembling and dismantling.
-- Compatible New structure design satisfies the hoisting assembling and stacking assembling .Cabinet standardization, compatible with outdoor & indoor usage, variety of pixel pitches.
-- Low Excellent heat dissipation design, no fans and air conditioning are required. Prime structure design, no tools are required.
Floor Stand P2 Advertising LED Display Poster Applications
1, Public places: subways, airports, bookstores, parks, exhibition halls, museums
2, Entertainment: cinemas, gyms, clubs, bars, beauty salons
3, Financial institutions: banks, securities, insurance companies
4, Business organizations: shopping malls, chain stores, hotels
5, Utilities: hospitals, schools, post offices
6, Real estate property: apartments, villas, offices, commercial buildings
Floor Stand P2 Advertising LED Display Poster Parameters
Pixel Pitch | 2mm |
Module Size | 128mm x128mm |
Module Resolution(Pixel) | 64dots ×64dots |
Pixel Density | 250000 dots |
LED Type | SMD 3 in 1 |
Pixel Configuration | 1R1G1B |
Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
Drive Mode | Dynamic 1/16 Duty Constant Current |
Cabinet Size | 768x1440x70mm |
Cabinet Resolution | 307dots ×576dots |
Brightness | ≥ 1,200cd |
Contrast | ≥2000:1 |
Viewing Angle | 140°(Horizontal )/140°(Vertical ) |
Minimum Viewing Distance | 1m |
Grey Scale | 10bits/1024levels |
Color Capability | 16,777,216 |
Color Temperature | 5000-9300K |
Average Power consumption | 400W |
Working Voltage | AC 220V/110V s±15% 50-60 HZ |
Frame Frequency | 60-85HZ |
Refresh Frequency | 240-1000HZ |
Brightness Correction | Pixel, Module, Cabinet Correction |
Operating Temperature | Static:-40°C~+85°C Working:-20°C~+60°C |
Operating Humidity | 10-90% RH |
LED Lifespan | 100,000 hours |
MTBF | ≥50,000 hours |
Computer Operation System | Win 98/ Win XP/ Win 2000 |
Video Signal Input | RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
Graphics Card | DVI Graphics Card |
Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
Control System | LINSN OR DB-STAR |
Software | LED studio 10.0 |
Waterproof Level | IP43 |
Installation | Wall mount, hung and stand structure |
Out of Control Rate | 0.01 % |
Floor Stand P2 Advertising LED Display Poster Notes
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd like to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
Floor Stand P2 Advertising LED Display Poster Descriptions
P2.5, P3, P4,P5 at optional, high brightness, high definition, bright multi color display.
one whole cabinet to keep good consistency of the whole led display, seamless splicing.
Led Poster no need to build an additional structure to settle the led screen,
After your purchasing, you just need to connect led display to base, connect power cable to socket, then it will work.
Floor Stand P2 Advertising LED Display Poster FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days
4.How about the warranty ?
We have two years warranty.

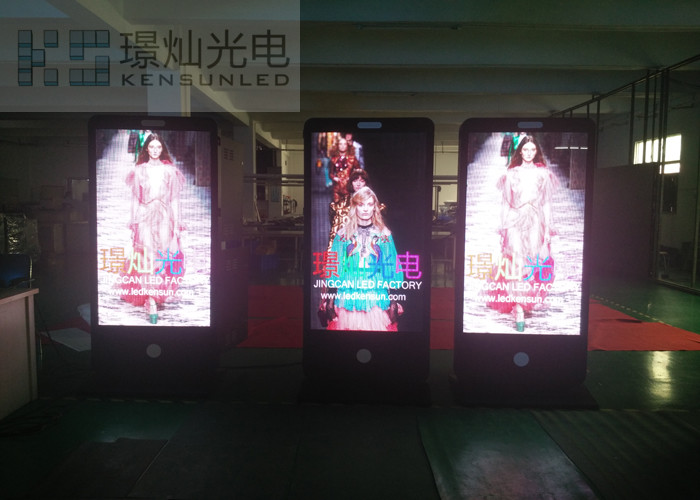

Floor Stand P2 Advertising LED Display Poster Pictures
![]() |
