P5 SMD3528 Advertisement Indoor Full Color Led Screen Hanging Meanwell Power Supply
P5 Indoor SMD3528 LED Screen Features
LIGHT & RUGGED
The special slim and lightweight design of the new P4 panel guarantees fast installation and transportation.
The selection of robust components ensures the lifetime of the panels, especially when used during road
shows or in a harsh working environment.
UNIFORMITY FOR A LIFETIME
Advanced brightness and color calibration offer you the highest picture uniformity and extended color balance.
The Radiant calibration camera ensures color uniformity for a panel lifetime. With its contrast ratio of over
3000:1, you will attract your audiences whether they are nearby or at a distance.
REVOLUTIONARY SILENCE
With its new revolutionary heat sink design, the die-cast cabinet panel ensures optimum heat radiation ensuring problem free operation and long product life. Concerning the 4-sides cooling ribs of the panel rear which ensuring perfect heat sinks, it’s he most silent panel in its class.
2-YEARS WARRANTY
With the combination of its advanced control system and boards, the data of brightness and color are saved in each board. Spare parts of boards with relevant data are always available during the 2 years warranty.
P5 Indoor SMD3528 LED Screen Functions
Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA.
1. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
2. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
3. Line-Double technology is adopted for the picture adjustment.
4. Can be connected with PC and the web net and show the content, and also can be controlled remotely viaVPM+ADSL.
P5 Indoor SMD3528 LED Screen Competitive Advantage
1. The cabinet made of aluminum, has very light weight, would not deformation, easy to transport. In addition, it is convenient to assemble and disassemble.
2. Has high refresh, Meet the needs of high-definition video shooting
3. Equips professional video processor, which supports signal formats like AV, DP, VGA, DVI, YPBPR, HDMI, SDI etc
4. Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.
5. Bring brilliance brilliant visual experience
P5 Indoor SMD3528 LED Screen FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days
4. How about the warranty ?
We have two years warranty.
P5 Indoor SMD3528 LED Screen Parameters
| name | technology parameter |
| 1.pixel tube: | pixel pitch:5mm; primary colors: red +green +blue; color composing:1R1G1B; full color |
| 2.unit box: | module size:320mm*160mm; Module resolution:64*32; cabinet size: 768mm*768mm; cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
| 3.the whole screen: | the optimum viewing angel: horizontal 120°, vertical 120° the optimum viewing distance:10-550m; working temperature:-10°C ~ +60°C relative humidity:≤95%RH; cabinet weight:45kg/sqm; |
| 4.operating voltage | AC220V±10% or 110V±10% or 380V or 240V or 440V :average consumption:350W/m2 Max consumption: ≤1100 W/ sqm |
| 5.master system: | PCTV non-linear editing card +DVI display card+ main controller card+ optic fiber transmission(Optional) |
| 6.main technology parameter: | 1)driving mode:1/16 scan 2)refreshing rate:≥1000Hz/s 3)frame frequency:≥100Hz/s 4)gray scale/color:≥16.7M colors(Synchronized) 5)manage gray:≥72bit 6)brightness:≥1800cd/sqm 7)color temperature condition:3500K~9500K,be adjustable 8)adjusting style of brightness: hand movement/auto 9)video signal: RF,S-Video,DVD,VCD,EVD,RGB,RGBHV,YUV,YC,COMPOS ITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10)master system adopt: PCTV card+ DVI display card +main master card+ optic fiber transmission 11)aver trouble-free time:≥10000hours 12)evenness: between random adjacent pixel ≤0.5mm,module splicing space <1mm 13)uniformity: strong pixel light, equal module brightness, without the phenomenon of color spot looking from the right side when it turns to be all white, and also the clean picture. 14)malfunction dot rate:<0.0001(to be discrete situation) 15)switch power loading:5V/40A 16)display mode of computer:1024×768 17)efficient communication distance: reticle:100m(without middle relay),multiple mould optic fiber:500m,single mould optic fiber 20km 18)Operating Environment Operating System / English Windows98/me/2000/ NT/XP
- Hardware configuration, Pentium 300MHz or above, ROM 64 m, standard VGA Graphics Card 2s56
or above
- Related software Microsoft Media Player, Office 2000, Real Player in the case of Real Player file
- LED Studio Software
- Control the way asynchronous screen (computing)
- An interface standard Ethernet
- Transmission distance CAT 5 cable: <100 m; single fiber: <10 km |
| 7.software | LED studio (SCXK) |

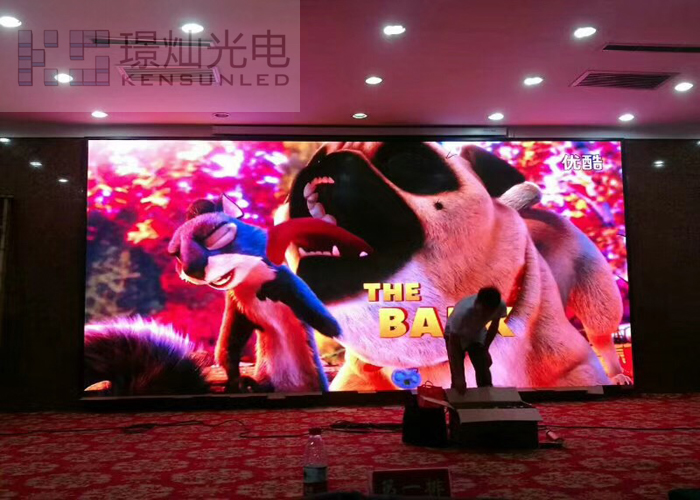

P5 Indoor SMD3528 LED Screen Pictures
